The MadBomber API will provide public information to complement the game.
Features
- Player Registration
- Public Gameserver List
- Public Map & Game Type Repository
- Global Statistics
Validations
- Ensure MBDS is reachable when server is registered and updated
- Ensure Player is authenticated before joining public server lobby
- Ensure joining Player does not exceed the servers player limit
- Ensure Server is online when match is submitted
- Ensure Server is authenticated when match is submitted
- Ensure submitted match duration is shorter than the time between last submitted match and now
- Ensure first submitted match duration is not absurdly long (>30 minutes)
- Ensure all participating players are on the server when match is submitted
- Ensure Player does not join two public lobbies at the same time
- Ensure unique names for Maps & GameTypes
- Ensure User Agent makes sense for the Request that is being made

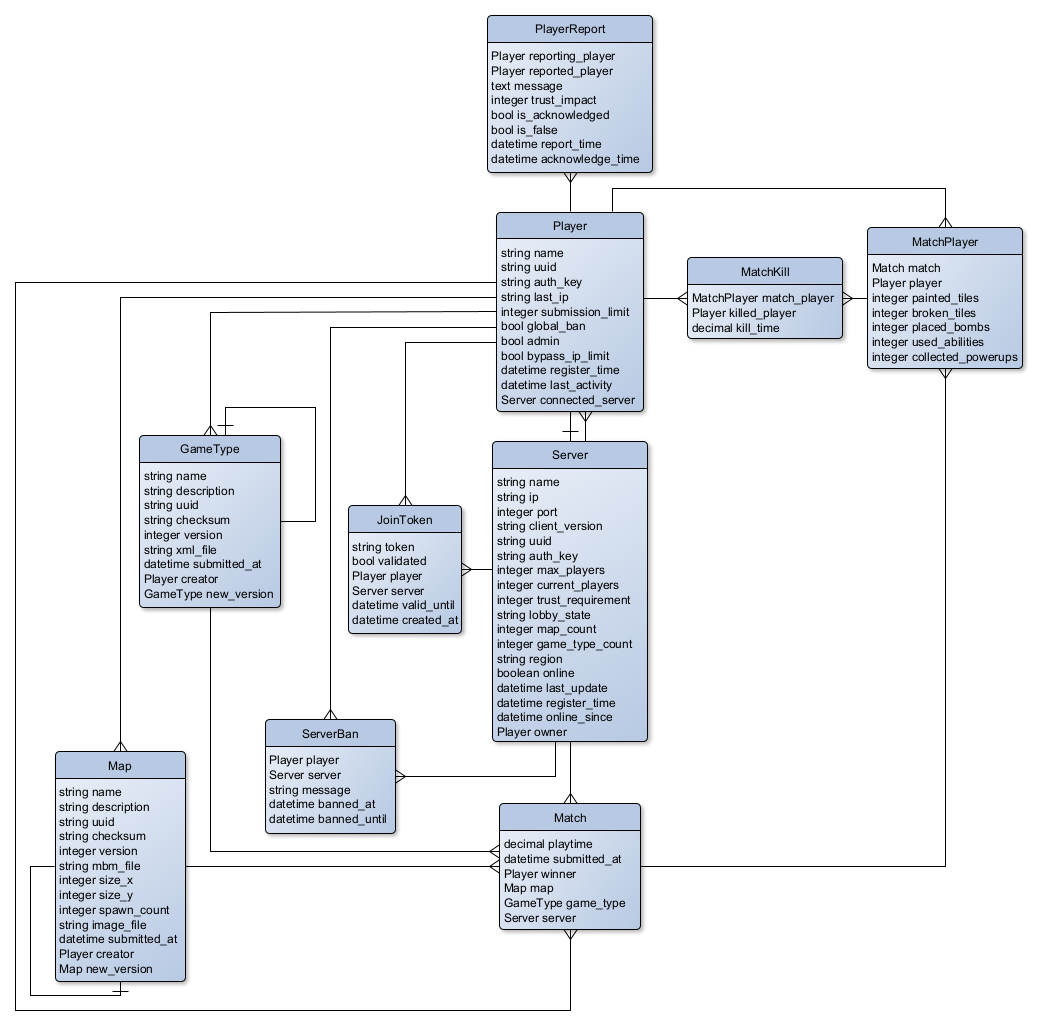

Data Structure
Objects
Server
Stores a Server that has registered itself on the MadBomber API.
| Type | Name | Description |
|---|---|---|
| string | name | The Name of the sever as configured by it’s Admin. |
| string | ip | The IP of the server for clients to connect to. Taken from the Header of the registration request. |
| integer | port | The Port of the server for clients to connect to as reported on registration. |
| string | client_version | The Game Client version expected by the server. |
| string | uuid | The UUID assigned to the server on registration. Effectively used like a Username for authentication. |
| string | auth_key | 512-bit Key used like a password for authentication. Stored as an argon2 hash. |
| integer | max_players | Player Limit as reported by the server. |
| integer | current_players | Currently active player count as reported by the server. |
| integer | trust_requirement | The minimum Trust Score required for Players to join this server. |
| string | lobby_state | A string to indicate the state of the lobby. Can be either Idle, Initializing or Ingame. |
| integer | map_count | The amount of loaded maps as reported by the server. |
| integer | game_type_count | The amount of loaded gametypes as reported by the server. |
| string | region | A string to indicate the physical location of a server for the purpose of selecting a nearby server. |
| boolean | online | Set to true if the server is reachable by the API. If this is set to false, the server will not be listed on the server list. |
| datetime | last_update | The last time an update from the server has been received. Used to ensure server aren’t offline for too long. |
| datetime | register_time | The time at which the server was first registered on the API. |
| datetime | online_since | The time at which the server reporter its startup. Effectively contains the last restart time. Can also be used to calculate uptime. |
| Player | owner | The player who owns this server. |
Player
Stores a Player that has registered themselves on the MadBomber API.
| Type | Name | Description |
|---|---|---|
| string | name | The players chosen nickname. Uniqueness is enforced. |
| string | uuid | The UUID assigned to the player on registration. Effectively used like a Username for authentication. |
| string | auth_key | 512-bit Key used like a password for authentication. Stored as an argon2 hash. |
| string | last_ip | The Last IP the Player has logged in with. |
| integer | submission_limit | The maximum combined amount of unique Maps and GameTypes that the player is allowed to upload. |
| bool | global_ban | Can be set to true to globally ban a player. A global ban prevents players from joining public lobbies and submitting maps/gametypes. Reserved for emergencies. |
| bool | admin | Defines this user as an API Admin. This will grant some minor benefits such as not being able to get reported and getting Nickname validations bypassed. Reserved for RFX. |
| bool | bypass_ip_limit | This will bypass the IP Check for this player, effectively allowing another account to be registered from the same IP as this player. |
| datetime | register_time | The time at which the player was registered on the API. |
| datetime | last_activity | The last time anything has been done by the player. Updated any time the player is successfully authenticated. |
| Server | connected_server | If the player is currently in a public server lobby, this will contain the server the player is currently connected to. |
Match
Stores the outcome of a ranked match played on a public server.
| Type | Name | Description |
|---|---|---|
| decimal | playtime | The total length of the match in seconds. |
| datetime | submitted_at | The time at which this match result was submitted. |
| Player | winner | The Player who won this match. Set to null if the match was tied. |
| Map | map | The map this match was played on. |
| GameType | game_type | The game type this match was played with. |
| Server | server | The server this match was played on. |
JoinToken
Stores a token that is used for validating Players every time they attempt to join a public lobby.
| Type | Name | Description |
|---|---|---|
| string | token | A 192-bit Hex string representing the token. |
| bool | validated | If the player authenticates themselves within a valid timeframe, this will be set to true. |
| Player | player | The player who reported themselves to the server. |
| Server | server | The server that requested the JoinToken. |
| datetime | valid_until | Defines when the Token will expire. Typically set to a few seconds after the creation time. |
| datetime | created_at | The time at which the Token was requested. |
MatchPlayer
Stores a players participation in a Match along with some stats.
| Type | Name | Description |
|---|---|---|
| Match | match | The match the player participated in. |
| Player | player | The player who participated in the match. |
| integer | painted_tiles | The amount of tiles painted by the player. Only used for Paint Bomb GameTypes. |
| integer | broken_tiles | The amount of tiles broken by the player. |
| integer | placed_bomb | The amount of bombs placed by the player. |
| integer | used_abilities | The amount of abilities used by the player (counter per use). |
| integer | collected_powerups | The amount of powerups collected by the player. |
MatchKill
Stores a kill that occurred during a match.
| Type | Name | Description |
|---|---|---|
| MatchPlayer | match_player | The MatchPlayer object of the killing player. |
| Player | killed_player | The Player object of the killed player. |
| decimal | kill_time | The time at which the kill occurred in seconds. |
Map
Stores a map submitted to the API by a player.
| Type | Name | Description |
|---|---|---|
| string | name | The filename of the map (including the File Extension). Uniqueness is enforced. |
| string | description | A description provided by the mapper to store additional information about the map. |
| string | uuid | A UUID assigned to the map used for identifying map objects across versions. Can be referenced in the server configuration to download the map automatically. |
| string | checksum | Contains a SHA256 Checksum of the map stored as a Base64 string. |
| integer | version | A number representing the Map Version. Starts at 1 and is incremented for every new version. |
| string | mbm_file | This field is used to store the MBM File using ActiveRecord. |
| integer | size_x | The Size of the map on the X Axis |
| integer | size_y | The Size of the map on the Y Axis |
| integer | spawn_count | The amount of SpawnPoints on the map. |
| string | image_file | This field is used to store the preview image using ActiveRecord. |
| datetime | submitted_at | The time at which this version of the map was submitted. |
| Player | creator | The player who created the map. |
| Map | new_version | References the new version of the map. Set to null on the latest version. |
GameType
Stores a GameType submitted to the API by a player.
| Type | Name | Description |
|---|---|---|
| string | name | The filename of the Game Type (including the File Extension). Uniqueness is enforced. |
| string | description | A description provided by the creator to store additional information about the GameType. |
| string | uuid | A UUID assigned to the GameType used for identifying GameType objects across versions. Can be referenced in the server configuration to download the map automatically. |
| string | checksum | Contains a SHA256 Checksum of the GameType stored as a Base64 string. |
| integer | version | A number representing the GameType Version. Starts at 1 and is incremented for every new version. |
| string | xml_file | This field is used to store the XML File using ActiveRecord. |
| datetime | submitted_at | The time at which this version of the GameType was submitted. |
| Player | creator | The player who created the GameType. |
| Map | new_version | References the new version of the GameType. Set to null on the latest version. |
ServerBan
Stores a ban of a player submitted by a server admin.
| Type | Name | Description |
|---|---|---|
| Player | player | The player who was banned from the server. |
| Server | server | The server the player is banned from. |
| string | message | A message provided by the server admin as the ban reason. |
| datetime | banned_at | The time at which the player was banned. |
| datetime | banned_until | The time at which the ban will be lifted. Limited to 10 years in the future. |
PlayerReport
Stores a report against a player submitted by another player.
| Type | Name | Description |
|---|---|---|
| Player | reporting_player | The player who submitted the report. |
| Player | reported_player | The player who got reported. |
| text | message | A message to explain why the report was submitted. |
| integer | trust_impact | How much Trust Score is deducted for the report. This deduction is only applied if the report has already been acknowledged. |
| bool | is_acknowledged | Used to confirm that RFX took a look at the report and deemed it valid. When this is set, the report will negatively affect the reported players trust score. |
| bool | is_false | Used to flag false reports. If RFX deemed a report to be false or abusive, this will be set and negatively affect the reporters trust score. |
| datetime | report_time | The time at which the report was submitted. |
| datetime | acknowledge_time | The time at which the report was acknowledged. |
